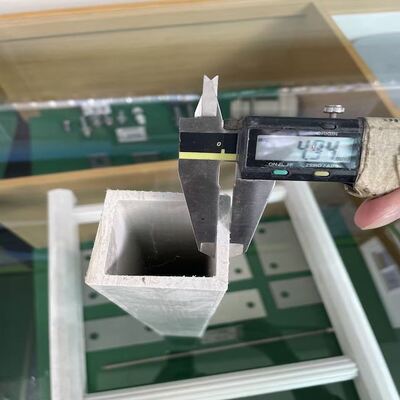

Versatile FRP Rectangular Tube profiles made from polyester epoxy and phenolic resins providing electric insulation and durability
| Menşe yeri | Çin |
|---|---|
| Sertifika | ISO 9000 |
| Model numarası | dikdörtgen tüp 52x32x5,0 |
| Min sipariş miktarı | 500kg |
| Fiyat | negotiatable |
| Ambalaj bilgileri | <i>usually packed in pallet and the quantity of a container depends on the measure and shape of the |
| Teslim süresi | 7 gün |
| Ödeme koşulları | T/T, L/C |
| Yetenek temini | HAFTADA 10 MT |
Ürün ayrıntıları
| Malzeme | Pultrüzyon ile cam elyaf takviyeli profil | Renk | Sipariş olarak çeşitli |
|---|---|---|---|
| Boyut | 52x32x5mm | Malzemeler | Poliester, VE, fenol, epoksi vb. |
| Karakter | Hafif ve hava koşullarına dayanıklı vb. | Başvuru | Altyapı ve kimyasal koruma vb. |
Ürün Açıklaması
Versatile FRP Rectangular Tube profiles made from polyester epoxy and phenolic resins providing electric insulation and durability
Specification:
| Rectangular tube | |
| A×B×T | g/m |
| 35×22×3 | 542 |
| 38×32×5 | 1120 |
| 40×25×3 | 655 |
| 40×30×3 | 710 |
| 52×32×4 | 1124 |
| 55×25×2.2 | 640 |
| 55×25×3 | 820 |
| 65×30×3 | 965 |
| 65×30×4 | 1250 |
| 69×25.4×4 | 1280 |
| 73×25×3 | 1020 |
| (75×3)×( 35×6) | 1440 |
| 75×45×3.5 | 1470 |
| 75×50×5 | 2180 |
| (89×5)×( 44.5×10) | 2950 |
| 100×50×5 | 2590 |
| (139×5)×( 44.5×10) | 3850 |
Introduction:
FRP profiles are high strength composite that comprises the reinforced material, thermosetting resin matrix (polyester, VE,, phenolic, epoxy, etc) and glass fiber (in the form of roving, mat, fabric etc.) supplementary curing agent and addictives, and cures to the desired shape through a certain process.
Features:
Pultruded FRP profiles possess the features of light weight, high strength, corrosion resistance, electric insulation, anti-aging, nonmagnetic, easy processing and bright color, able to meet the properties demands of different fields and surroundings, and are widely used in construction industry, chemical perservation, electric electronics, sewage treatment, transportation and recreation.
Pultruded FRP profiles include H/I beam, angle, C/U channel, round tube, square tube, flat bar and rod etc standard profile and specially desgined customized profile.
