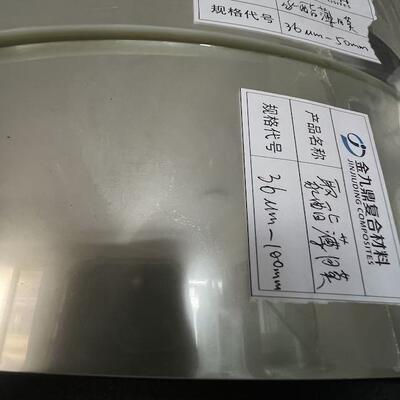

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration

Menşe yeri Çin
Sertifika ISO9001
Model numarası 36um-100mm
Min sipariş miktarı 1200kgs
Ambalaj bilgileri palet, 1200kgs/palet
Teslim süresi 7-15Gün
Ödeme koşulları Ekipman işleme kapasitesine göre pazarlık yapın
Ürün ayrıntıları
Hammadde %100 PET Kopma Uzaması %60
örnek Mevcut ve Ücretsiz Malzeme polyester
Başvuru kalıptan çıkarma Çekme mukavemeti 150 MPa
Ambalaj Plastik torba, palet Renk Şeffaf
Hs Kodu 392062 Sıcaklık direnci 180 ° C'ye kadar
Genişlik 50mm, 70mm veya sipariş olarak
Mesaj bırakın
Ürün Açıklaması

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration



This 25 - um - thick Polyester Release Film is specifically designed for use in the manufacturing process of Glass - Reinforced Plastic (GRP) pipelines. Its unique properties make it an essential component in ensuring the high - quality production of these pipelines. With excellent strength, it can withstand the pressures and forces exerted during the manufacturing steps. The film's strong yet flexible nature allows it to conform precisely to the shape of the pipeline molds. Its remarkable clarity ensures that there are no visual impairments or distortions that could potentially affect the quality inspection of the GRP pipelines. Moreover, being free of joint knots, it provides a smooth and continuous surface, which is crucial for the uniform curing and integrity of the GRP material, resulting in durable and reliable GRP pipeline.



Product Features

Excellent resistance to high and low temperatures

Good chemical resistance

Excellent mechanical and electrical performance

Excellent flatness, low friction coefficient



Product Application

This product is widely used for mold demolding and surface smoothing in the production process of fiberglass pipelines, storage tanks, etc. The film surface can also be coated with silicone oil treatment to make demolding more efficient.





High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration 0

Technical Data



Item Standard
Thickness (um)

19/25/30/36/40/50/75 ± 10%



Tensile strength (Mpa )      (warp and weft)

≥ 150



Break elongation (%)

≥ 60



Shrinkage (%) (warp and weft) ≤3
Stability under high temparature

≥180
